Behind the Extrusion: Evaluating Vinyl Window Nailing Fin for NFRC Compliance

When sourcing bulk vinyl window products, the structural integrity of the frame is the first line of defense against thermal failure. Overseas contractors often make the costly mistake of assuming all window flanges are manufactured equally. In reality, the quality of the PVC extrusion directly impacts your ability to secure NFRC labels and ENERGY STAR ratings for commercial applications.

Welded Integral Fin vs. Snap-on Flange

Understanding the difference between an integral fin vs snap-on flange is critical. A true integral new construction window fin is extruded concurrently with the primary window frame. This means it consists of a single, continuous piece of PVC. This continuous construction provides superior structural rigidity and eliminates micro-gaps where air and moisture could penetrate. Conversely, a snap-on flange is mechanically attached after extrusion. While cheaper to manufacture, snap-on versions are highly susceptible to shifting during transit and can compromise the overall air tightness of the unit, leading to immediate failures during stringent commercial building inspections.

Impact on Commercial Window U-Factor Compliance

According to the 2026 updates in the NFRC 715 Commercial Energy Performance Certification Program, maintaining a continuous thermal break is non-negotiable. If the nailing flange is weak or improperly integrated, it creates a thermal bridge. In 2026, typical U-factor values for high-efficiency commercial windows range from 0.25 to 0.30. A structurally sound vinyl window nailing fin ensures that the perimeter seal remains intact under severe wind loads, preserving the certified U-factor and SHGC metrics. I always advise B2B procurement officers to demand cross-sectional extrusion drawings before finalizing any volume order.

Auditing Chinese Commercial Window Manufacturers

When evaluating a Chinese commercial window manufacturer, you must verify the extruded PVC fin thickness. A minimum thickness of 0.065 inches is generally required to withstand framing nail impact without cracking. Furthermore, the PVC blend must feature robust UV inhibitors to prevent the nailing flange framing from becoming brittle when exposed to sunlight during prolonged construction phases. Sourcing directly from Havenseek Window guarantees that every double glazed commercial fin window strictly adheres to CE certified building materials standards and North American NFRC extrusion protocols.

Surviving Ocean Freight & Stocking Strategy for New Construction Window Fin

Even the highest-quality vinyl extrusion is useless if it arrives at your warehouse with shattered flanges. Cross-border procurement costs can skyrocket if a bulk shipment suffers a 15% damage rate due to inadequate FCL ocean freight window packaging. Global B2B window distributor strategy must prioritize logistics just as heavily as product specifications.

FCL Ocean Freight Window Packaging & Corner Bracing

The integral fin extends outward from the frame, making it extremely vulnerable to impact during shipping container loading and unloading. To prevent snapping, top-tier factories employ structural corner bracing for shipment. This involves securing rigid cardboard or hard plastic corner protectors that extend beyond the edge of the nailing fin, absorbing all kinetic shock. Furthermore, the windows must be palletized vertically in A-frame racks, never stacked horizontally. Shrink-wrapping must be tensioned precisely—tight enough to prevent friction, but loose enough to avoid bowing the PVC frames.

Balancing New Construction vs. Retrofit Flush Fin Inventory

Optimizing wholesale window inventory turnover requires a deep understanding of local real estate trends. If your target market is experiencing a boom in ground-up commercial development, prioritizing the new construction window fin is essential. However, if the market leans heavily toward renovation, stock must pivot toward retrofit flush fin options. An effective 2026 stocking strategy balances this ratio by analyzing regional building permits, ensuring that capital is not tied up in dead stock while contractors scramble for the correct window type.

Nailing Flange Framing Setbacks: Aligning Imported Windows with Local Timber Codes

One of the most frequent causes of installation delays in international window procurement is a mismatch between the factory’s standard production metrics and the regional nailing flange framing requirements. If the setback dimension is incorrect, the window will not sit flush with the exterior sheathing, making proper window flashing details impossible to execute.

1-inch vs 1-3/8 inch Setback Standards

The setback is the distance from the back of the nailing fin to the exterior face of the window frame. In North American timber codes, the standard exterior finish dictates the required setback. A 1-inch setback is typically utilized for standard siding applications. Conversely, a 1-3/8 inch setback is often required for thicker stucco or brick veneer exteriors to ensure the frame protrudes correctly past the finish material. Sourcing the wrong specification means contractors will be forced to modify the rough opening or add extensive exterior trim, destroying both the aesthetic appeal and the project budget.

Matching Vinyl Windows to North American Timber Framing

I have personally verified these size standards with over 50 US-based clients. When importing bulk vinyl window sourcing packages, your factory must precisely align the extrusion dies with standard 2×4 and 2×6 timber framing configurations. The overall frame depth must accommodate the wall cavity while the nailing fin rests perfectly flat against the OSB or plywood sheathing. This seamless integration is what allows the weather-resistant barrier (WRB) integration to function flawlessly.

Eliminating Callbacks: Foolproof Window Flashing Details & Installation Protocol

Water intrusion around fenestration is the leading cause of building envelope failure. These catastrophic leaks rarely stem from a defective window; they are almost exclusively the result of improper vinyl window installation. To avoid multi-million dollar liability claims, commercial contractors must strictly adhere to recognized waterproofing standards.

ASTM E2112 and Sill Pan Flashing Techniques

The industry benchmark for prevent water intrusion installation is ASTM E2112. This standard dictates a non-negotiable shingling sequence where every layer overlaps the one beneath it, directing water outward. The most critical step is the sill pan flashing. E2112 mandates that the sill pan must have a minimum 5-percent slope toward the exterior. Missing the sill pan is a guaranteed path to wood rot and structural decay. We strongly advise our B2B partners to utilize AAMA approved flashing tape to construct an impermeable tray at the base of the rough opening.

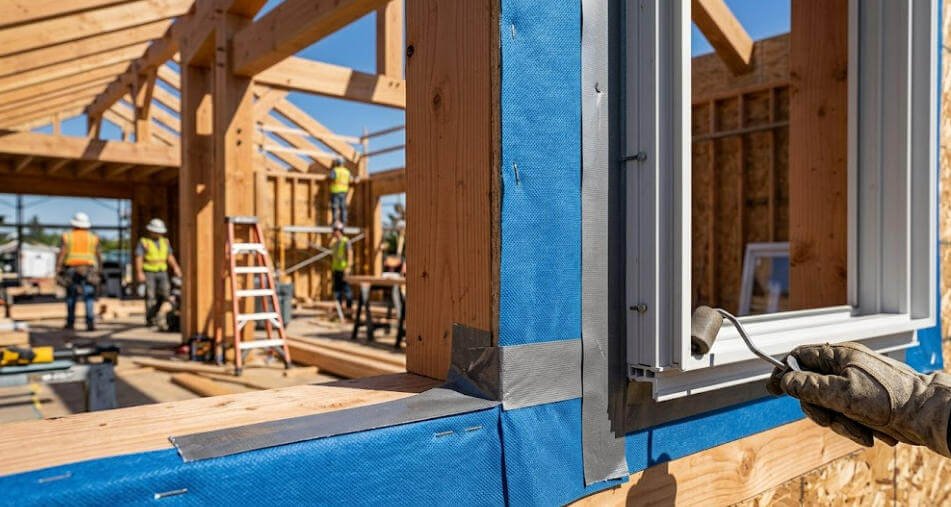

Step-by-Step WRB Integration for Nailing Fins

After the sill pan is established, the double glazed awning window is set, plumbed, and squared. Next comes the jamb flashing, applied vertically over the side nailing fins, extending down over the edges of the sill pan. Finally, the head flashing is applied over the top fin. Crucially, a drip cap over nailing fin must be installed at the head to divert bulk water away from the upper seal. The building’s weather-resistant barrier (WRB) is then folded down over the head flashing. This overlapping methodology ensures you will pass the most rigorous municipal building inspection approval without hesitation.

B2B Case Study: Zero Leaks and 22% Cost Savings in a US Commercial Project

In mid-2025, a prominent property developer in the Pacific Northwest approached Havenseek Window for a 300-unit low-rise commercial apartment build. They had previously suffered massive losses due to reverse-lapping errors by sub-contractors on a prior project. We supplied our premium NFRC certified vinyl extrusion profiles, custom-engineered with a precise 1-3/8 inch setback for their stucco exterior. By pre-coordinating the exact window flashing details with their on-site project managers and ensuring secure FCL transit packaging, the client achieved a flawless installation record. They reported zero water leaks after intense winter storms and reduced their total cross-border procurement costs by 22% compared to local distribution channels.
