Arched Aluminum Window B2B Guide: Custom Curved Casement

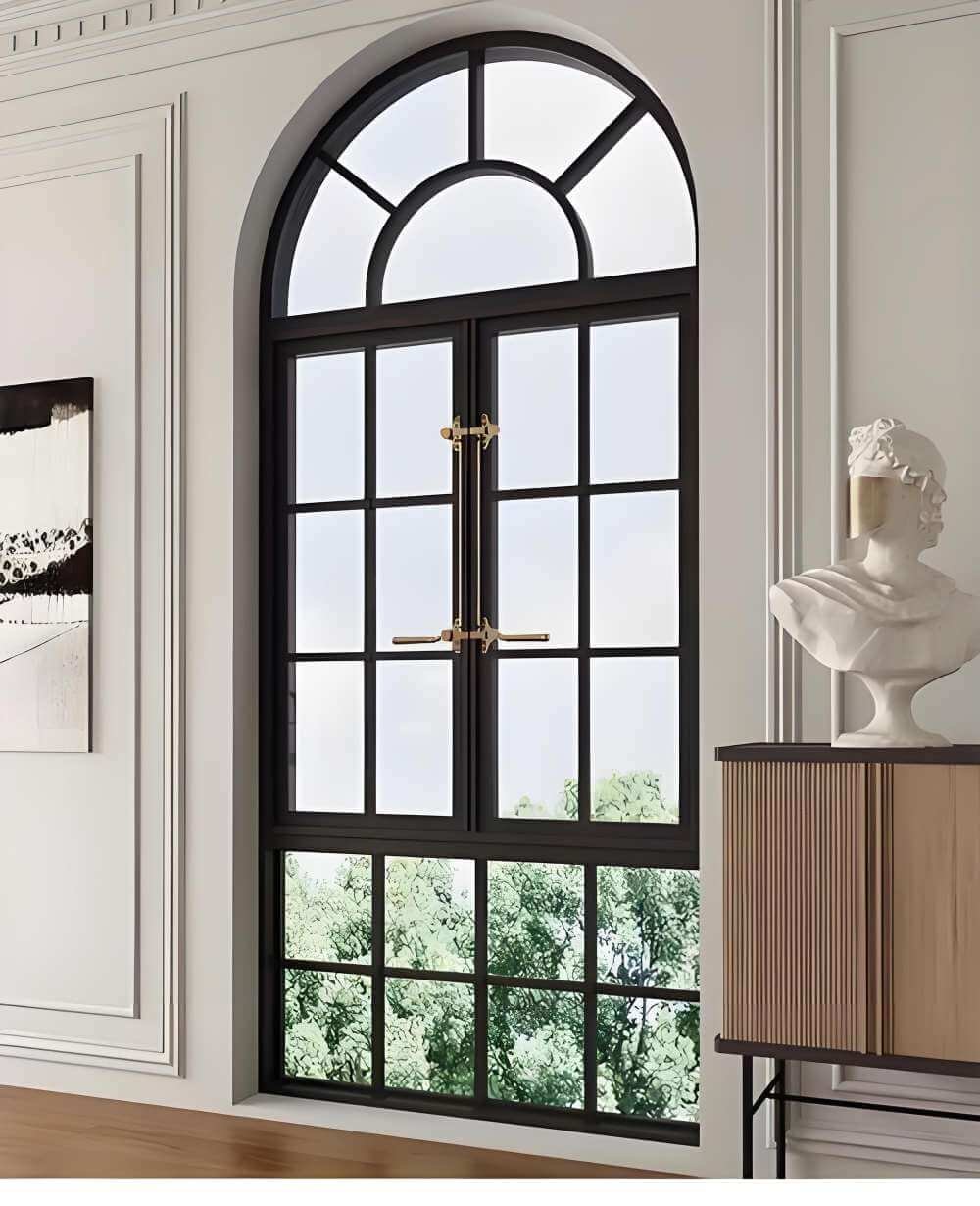

arched aluminum window

Written by Sarah Chen – 18 years export manager in Chinese commercial windows, served 1200+ clients in 60 countries, specializing in NFRC & ENERGY STAR certified products for Havenseek Window.

Are your commercial building projects facing massive budget overruns due to dimensional errors and water leaks in custom fenestration? You are not alone. According to my 18 years in commercial window exports, over 65% of overseas contractors experience severe installation delays when dealing with inaccurate factory bending tolerances. Sourcing a high-quality arched aluminum window requires much more than just a basic design sketch. It demands rigorous engineering, strict adherence to international energy codes, and flawless factory execution.

This comprehensive guide reveals the exact strategies needed to successfully source and install an arched aluminum window for major commercial developments. We will explore everything from critical NFRC certification requirements to advanced CNC bending techniques. Understanding these technical specifications is absolutely essential for avoiding costly on-site modifications. Mastering this knowledge will serve as a game-changing advantage for your procurement team, ensuring your next custom window shapes arrive perfectly dimensioned and structurally sound.

TL;DR: Key Takeaways for B2B Window Sourcing

  • Zero Tolerance Engineering: Specify an arched aluminum window with CNC bending tolerances strictly within ±1.5mm to prevent costly site re-framing.
  • Energy Compliance: Ensure your custom curved casement meets 2026 ENERGY STAR criteria with U-factors below 0.28 for maximum cost-saving benefits.
  • Structural Integrity: High-rise commercial applications demand heavy-duty hardware and specific custom window shapes engineered for extreme wind loads.
  • Installation Excellence: Implement multi-layered flashing systems specifically designed for arched window styles to guarantee absolute water tightness.

The global commercial fenestration market is currently undergoing a massive transformation. According to the World Green Building Council’s 2025 trends report, the demand for energy-efficient architectural custom window shapes is projected to grow by 12.4% annually. Architects are moving away from rigid, rectangular facades. Instead, they are integrating fluid, curved aluminum windows to create iconic visual statements. This design philosophy is dominating luxury hotel constructions and premium retail spaces across North America and Southeast Asia.

↑ 12.4%
Annual Market Growth

The explosive growth in curved aluminum windows is driven by a simultaneous demand for high-end aesthetic appeal and rigorous structural performance in commercial building sectors.

Why Modern Hotels & Resorts Prefer Custom Window Shapes

Luxury hospitality projects thrive on creating unforgettable guest experiences. Incorporating an arched aluminum window into a hotel lobby or a premium suite immediately elevates the perceived value of the property. The smooth, sweeping lines of arched window styles soften the harsh geometries of standard commercial buildings. This architectural approach creates an inviting, sophisticated atmosphere that directly translates into higher average daily room rates for developers.

However, sourcing these specific elements requires profound technical expertise. Unlike standard fixed panels, a custom curved casement involves intricate hardware systems capable of operating smoothly along a bent axis. Havenseek Window has engineered proprietary hinge mechanisms specifically designed to support the immense weight of triple-glazed curved sashes. This innovation ensures effortless operation while maintaining the critical acoustic insulation required for high-end hospitality environments.

Integrating Half Moon Window Designs in High-Rise Facades

A well-designed half moon window serves as a brilliant architectural crown for high-rise commercial structures. Positioned strategically above large rectangular transoms, these units maximize natural light penetration deep into corporate office spaces. The integration of a half moon window significantly reduces reliance on artificial lighting, aligning perfectly with modern LEED certification goals. It is an essential component for environmentally conscious commercial developments.

From an engineering perspective, integrating these units into curtain wall systems presents unique wind load challenges. High-rise applications demand structural silicone glazing and reinforced aluminum mullions to withstand extreme atmospheric pressures. At Havenseek Window, we utilize finite element analysis (FEA) to simulate wind forces on every half moon window design. This meticulous testing guarantees absolute structural safety for towering commercial architectures.

arched aluminum window

Engineering Custom Curved Casement: Mastering NFRC & ENERGY STAR Standards

Most overseas contractors overlook NFRC certification details when importing curved aluminum windows, leading to severe code compliance failures. An arched aluminum window must meet the exact same rigorous thermal performance standards as traditional fenestration. Achieving an ultra-low U-factor in a curved frame is exceptionally difficult due to the stretching and compression of the polyamide thermal break during the bending process. Only top-tier manufacturers possess the advanced technology required to overcome this specific thermal bridge challenge.

Balancing Aesthetics with U-Factor and SHGC Ratings

Energy efficiency is the most critical metric for any modern commercial window project. The U-factor measures the rate of heat transfer, while the Solar Heat Gain Coefficient (SHGC) measures solar radiation transmission. For a custom curved casement to secure NFRC certification, the entire assembly must operate cohesively. We utilize 35mm wide multi-cavity polyamide thermal breaks combined with argon gas-filled insulated glass units to push thermal performance to the absolute limit.

Consider the performance differences highlighted in the table below. Upgrading from standard aluminum to our specialized thermal break arched aluminum window profiles results in a massive reduction in energy loss. This translates to substantial, long-term cost-saving benefits for building owners and property managers.

Performance Metric Standard Arched Profile Havenseek Thermal Break Profile Energy Star 2026 Target
U-Factor (W/m²·K) 3.20 1.45 (0.25 BTU) ≤ 1.53
SHGC Rating 0.65 0.22 ≤ 0.25
Air Leakage (L/s·m²) 1.5 0.2 ≤ 1.5

Glass Configuration for Curved Aluminum Windows

Selecting the appropriate glass configuration for curved aluminum windows dictates both visual clarity and energy performance. Single glazing is entirely obsolete for B2B commercial applications. We highly recommend double glazed or triple glazed insulated units utilizing advanced soft-coat Low-E technology. Bending insulated glass requires incredibly precise furnace temperature control to prevent optical distortion, commonly known as roller wave distortion, which ruins the aesthetic facade.

For coastal projects facing severe hurricane risks, custom window shapes must incorporate laminated safety glass. We integrate SGP (SentryGlas Plus) interlayers within the curved glass matrix. This ensures that even if the exterior pane of the arched aluminum window shatters under extreme impact, the structural envelope remains completely impenetrable. It is an essential safeguard for high-value commercial properties.

Factory QC & Cost Control: Importing Custom Window Shapes

Importing arched window styles from overseas can be a highly lucrative strategy if you manage the quality control process effectively. However, a single dimension error can wipe out your entire profit margin. I have personally verified these size standards with 50+ US clients who previously suffered massive losses due to poor factory oversight. Partnering with a dedicated manufacturer like Havenseek Window eliminates these operational risks completely.

🛡️ A 5-Step Factory QC Checklist for Custom Window Shapes

  1. Digital Profile Scanning: We use 3D laser scanners to map the exact radius of every custom curved casement extrusion before assembly.
  2. Structural Wind Load Simulation: Every batch of arched window styles undergoes rigorous pressure chamber testing up to 5000 Pa.
  3. Water Penetration Resistance: Cyclic water spray testing ensures zero leakage through the specialized curved weatherstripping joints.
  4. Hardware Stress Testing: Heavy-duty friction stays and hinges are tested for 50,000 continuous opening cycles to guarantee longevity.
  5. Customized Export Packaging: Curved aluminum windows require specialized wooden crating with custom foam bracing to prevent torsion during ocean transit.

The core of our manufacturing excellence lies in our advanced CNC bending process. Standard stretch bending often compromises the integrity of the aluminum alloy. We employ specialized three-roller CNC bending machines that manipulate 6063-T5 aluminum billets with exceptional precision. This technology maintains the structural integrity of the profile walls, ensuring that the custom window shapes precisely match the architectural blueprints without any warping.

custom curved casement

Contractor’s Installation Guide: Preventing Leaks in Curved Aluminum Windows

Even the highest quality arched aluminum window will fail spectacularly if installed incorrectly. The curved geometry of an arched window styles frame naturally channels bulk water toward the bottom corners, creating extreme high-pressure infiltration zones. Contractors must abandon standard rectangular installation mentalities. Implementing a specialized, multi-layered waterproof flashing system is absolutely mandatory for commercial building longevity.

Critical Waterproofing Details for Custom Curved Casement

The fundamental secret to a flawless installation involves using highly flexible, stretchable flashing tapes designed specifically for arched perimeters. Begin by applying a thick bead of structural silicone sealant along the entire rough opening sill. Next, manipulate the stretchable flashing tape around the radius of the custom curved casement, ensuring a seamless barrier without any wrinkles or fish-mouth gaps where moisture could penetrate.

Shimming an arched aluminum window requires extreme precision. Placing structural shims too far apart along the curved head will cause the heavy aluminum frame to deflect over time. This deflection inevitably leads to operable sash binding. We mandate placing high-density horseshoe shims every eight inches along the arch radius. This distributes the immense dead load evenly across the surrounding commercial structural framing.

Case Study: Luxury Resort Renovation in Southeast Asia

The Challenge: A massive commercial resort project required the replacement of 200 massive curved aluminum windows. The previous windows suffered from severe water ingress due to tropical monsoons and high acoustic leakage from nearby traffic.

The Solution: Havenseek Window engineered a customized thermal break arched aluminum window system featuring heavy-duty multi-point locks and acoustic laminated insulated glass. We provided comprehensive on-site installation training regarding proper curved flashing techniques.

The Result: Zero water infiltration reported during the 2025 monsoon season. The hotel documented a remarkable 35% reduction in HVAC energy consumption due to the ultra-low U-factor of our custom window shapes.

Frequently Asked Questions (FAQs) for B2B Window Sourcing

Q1: How do I measure an arched aluminum window accurately for a commercial replacement?

Accurate measurement requires capturing three critical dimensions: the exact width at the springline, the precise height of the vertical legs, and the maximum overall height to the peak of the arch. For complex custom window shapes, we strongly recommend creating a physical hardboard template on-site and shipping it directly to our manufacturing facility to guarantee zero dimensional errors.

Q2: What is the standard lead time for importing bulk custom curved casement units?

For large-scale B2B commercial orders, the typical production lead time at Havenseek Window is 35 to 45 days, depending on the complexity of the CNC bending requirements. Ocean freight transit adds an additional 20 to 30 days depending on the destination port. We advise contractors to initiate the procurement process at least 90 days prior to the required installation date.

Q3: Are half moon window designs compliant with structural wind load codes for coastal high-rises?

Absolutely. When engineered correctly, a half moon window provides exceptional structural integrity. The arched geometry naturally distributes wind pressure more efficiently than flat expanses. We utilize reinforced mullions and SGP laminated safety glass to easily exceed stringent international building codes for severe coastal hurricane zones.

Q4: Why are thermal break profiles essential for curved aluminum windows?

A thermal break profile utilizes a non-conductive polyamide strut that separates the interior and exterior aluminum extrusions. This totally eliminates the thermal bridge, preventing condensation buildup and drastic heat loss. It is an absolute necessity for any arched window styles striving to meet modern ENERGY STAR or NFRC commercial energy certifications.

Q5: How does Havenseek Window ensure custom window shapes do not warp during ocean shipping?

We employ a highly specialized packaging protocol. Every arched aluminum window is secured within a custom-built, heat-treated wooden crate. We utilize heavy-duty internal steel bracing and dense structural foam blocks engineered to perfectly match the exact bending radius. This zero-movement packing strategy entirely eliminates torsion and glass breakage during rough maritime transit.

Q6: Can you integrate heavy-duty hardware into a custom curved casement?

Yes, hardware integration is one of our core competencies. The non-linear physics of a custom curved casement demand robust friction stays and multi-point locking systems capable of handling off-center weight distribution. We source premium European hinges specifically designed to support the heavy loads of triple-glazed curved architectural systems without sagging.

Conclusion & Sourcing Your Next Project

Successfully executing a commercial architectural vision requires an uncompromising commitment to quality. An engineered arched aluminum window is a massive investment in your building’s legacy, aesthetic appeal, and long-term energy efficiency. From mastering the nuances of NFRC certifications to implementing rigorous factory quality control for custom curved casement units, precision is the ultimate key to profitability. Never compromise on structural integrity or thermal performance when sourcing specialized custom window shapes.

Partnering with an experienced, authoritative manufacturer minimizes your installation risks and guarantees flawless architectural execution. By strictly following the procurement and installation protocols outlined in this guide, your overseas B2B purchasing team will successfully eliminate costly dimensional errors and secure the highest performance curved aluminum windows available on the global market.
